What is Package.appxmanifest File in Windows 8 Metro Style Application?

Hope you gone thru my previous video tutorial “How to Create a Windows 8 Metro Style Application using Visual Studio 2011?”, where I demonstrated about Windows Metro Style Application templates, creation of project and it’s project structure. There we also demonstrated one simple “HelloMetroStyleApplication” sample.


In this video tutorial, we will learn about “Package.appxmanifest” file which resides in the Metro application project directory. We will discuss step-by-step about each property page and XML content of this manifest file.


What’s there inside the manifest file?

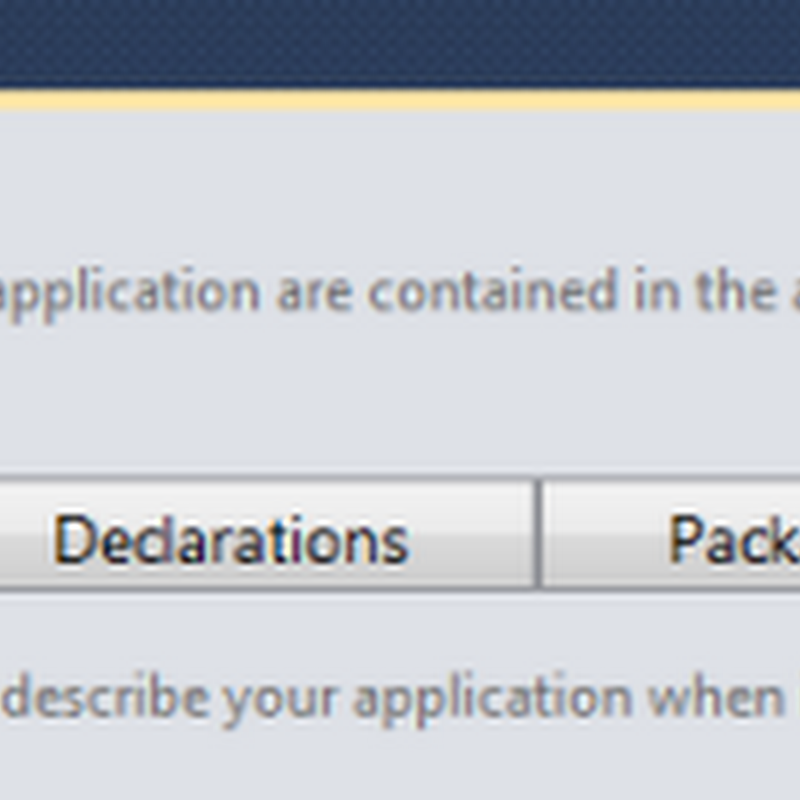

Package.appxmanifest” is nothing but an XML file but when you open it by double clicking inside Visual Studio 2011 IDE, it will open in designer mode where you will notice four tab panels inside it (named: Application UI, Capabilities, Declarations and Packaging) as shown below:

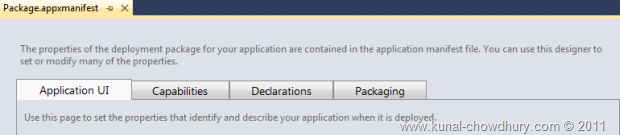

Package.appxmanifest File of Windows 8 Metro Style Application


All the tabs have different sets of exposed properties for your application and here is what each tab means:


Tab Item Description
Application UI Use this page to set the properties that identify and describe your application when it is deployed
Capabilities Use this page to specify system features or devices that your application can use
Declarations Use this page to add declarations and specify their properties
Packaging Use this page to set the properties that identify and describe your package when it is deployed


To open it in XML mode, right click on the “Package.appxmanifest” file and from the context menu click on “View Code”. This will open the manifest file in simple XML text mode. The file will look like this:


<?xml version="1.0" encoding="utf-8"?>
<Package xmlns="http://schemas.microsoft.com/appx/2010/manifest">
<Identity Name="32e0eb85-017a-444a-a42b-00c49fc0b9cb"
Publisher="CN=Kunal Chowdhury"
Version="" />
<PublisherDisplayName>Kunal Chowdhury</PublisherDisplayName>


More details about each section is available in the Video Tutorial.


Video Tutorial

Here is the complete video tutorial where I demonstrated each one of the tab panels of “Package.appxmanifest” file. Continue watching it to learn more:



End Note

Hope, it was a helpful tutorial for you to understand the “Package.appxmanifest” file. Now you will be able to configure it properly before packaging your Windows 8 Metro Style Application. Stay tuned to my blog for more video tutorials on the same topic.


Follow me on Facebook to be updated on latest article news. I am also available on Twitter. Connect with me if you want to contact and/or stay tuned on latest updates. If you have any queries or feedback on this topic, don’t forget to share it here and I will try to help you at the earliest.

If you have come this far, it means that you liked what you are reading. Why not reach little more and connect with me directly on Twitter , Facebook , Google+ and LinkedIn . I would love to hear your thoughts and opinions on my articles directly. Also, don't forget to share your views and/or feedback in the comment section below.


  1. thanks too much for ur work hope u do more tutorials soon

  2. Hi Kunal,
    Can I programatically make changes to package.appxmanifest file.
    For eg : I would like to change the Tile image after checking few conditions on the application end via API. Can we achieve this in Visual Studio 2012 RT for Windows App Metro UI App?

    Please advise.
    Nitin R
