Step-by-Step Tutorial to Setup Windows8 in VMWare


In this article, I will guide you to setup a Windows 8 Virtual Machine in VMWare environment. Just follow the steps mentioned here and you will be done with the installation. I will use the 32bit Windows 8 Developer Preview ISO image to mount for the installation step. If you have bootable drive, you can directly use that.



The step-by-step process will show you creation of new Virtual Machine and then the installation of Windows 8 Developer Preview version in the VM. Read the complete post to find out more.



Why did I Chose VMWare?

Before going into depth to guide you through the installation steps, let me first tell you that VMWare is not a Free tool. You need to purchase it before use. BTW, the 30 days license is available for free to try it with. So, a question may come to your mind, if it is not free and as there are lots of free virtualization software available in the market, then why I need to use VMWare?



Ok friend, this might be your case that the other virtualization software is not working for you. Like mine, I was unable to start the installation with the Oracle VirtualBox due to some errors. Searching on net that I noticed that, many people are facing similar kind of issues and I will do the investigation for that once I get time.



So for now, I chose VMWare. If you are facing any issues in other virtualization software's, you may try with this. Follow the below mentioned steps to proceed with.



Download VMWare Workstation 8

First step here will be installation of VMWare. You can download it from VMWare site very easily. Download “VMWare Workstation 8” as Windows 8 supports this version only and that is the latest version as of now.

Remember that, you will just need an account on their site to proceed with the download and that is free. You will also need a 30 days free trial license. We will discuss on it later point of time.



Create Virtual Machine

Once you installed the software (hope you already setup that) we can proceed with the VM creation step. Open the VMWare Workstation 8 which will look as shown below:

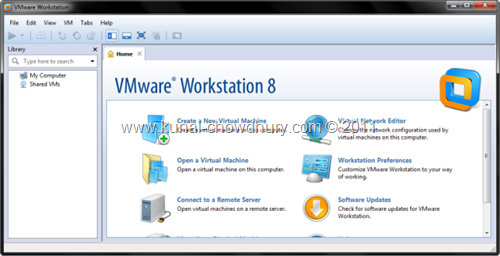

1. VMWare Workstation



Click the link called “Create a New Virtual Machine” as shown below:

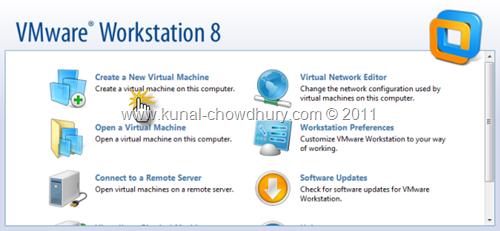

2. Create a New VM



This will start up the Virtual Machine creation Wizard. In the first screen, chose “Typical” option and click “Next” to proceed with the Wizard. If you are an advanced user, you may chose “Custom” type, else go with the Typical setup.

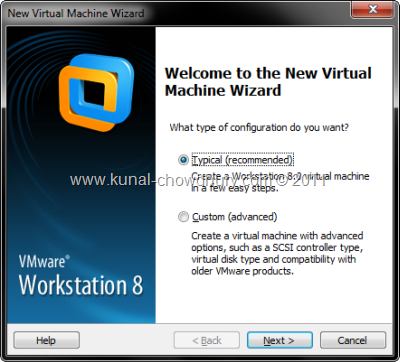

3. Create New Virtual Machine



In the second screen, you have to mount the installation media. If you have bootable device (DVD Disc) in your drive, you can proceed with the first option in this screen. If you have the ISO image of the Windows 8, mount it from the proper location as shown below:

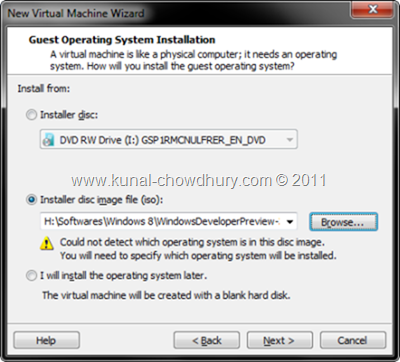

4. Mount the Installer Disk



You can skip installing the OS from this step by choosing the third option, but I will recommend to start with it from here itself. Click Next to continue.



In the next screen, chose your guest operating system. In my case, it is Windows 7. Have a look into the following screenshot for reference:

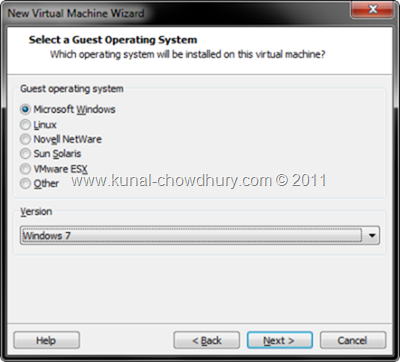

5. Chose your Guest OS



Once you click “Next”, you will come to the next screen where you need to specify the VM Location. The wizard will create the VM in the specified directory. Click “Browse” if you want to chose a different directory. Click “Next” to continue with the disk settings.

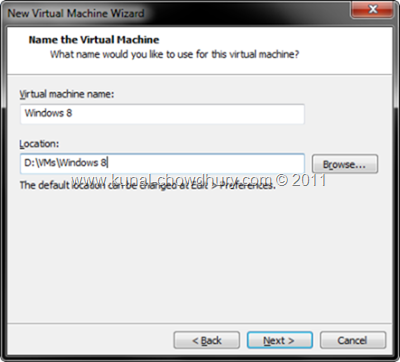

6. Provide Location of VM



In this screen, you need to specify various disk options like size of the disk, files. I will recommend a higher value for the disk size depending on your free space. Chose between single file or multiple files. Splitting the virtual disk into multiple files may cause some performance issues and hence it is better to go with a single file installation. Click “Next” once you are done.

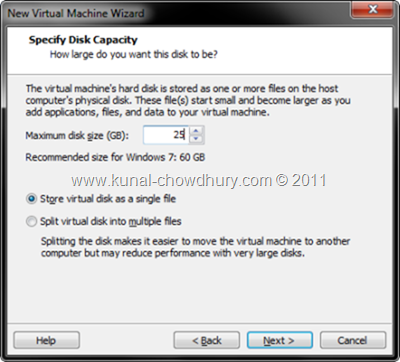

7. Specify Disk Capacity of VM



This is the final step where you will review your settings. If you need to modify some of them, click back to change any settings in the previous screens, else click “Finish” to start creating the Virtual Machine.

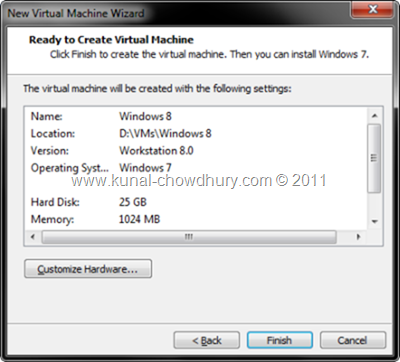

8. Click Finish to Create the VM



This is the last step of the virtual machine creation. Once done, it will show up the VM in the VMWare Workstation.



Installing Windows 8 in VMWare Workstation

Once you are done with the Virtual Machine creation process, it’s time to install the Windows 8 in the VM. As shown below, click the “Run” button in the workstation to boot up the VM. This will start the actual OS installation process.

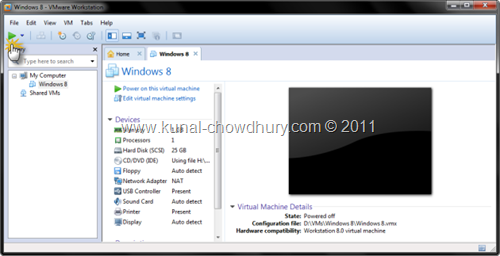

9. Click Run to Boot the VM



If you didn’t yet installed the license, this will prompt you to enter the license key. If you don’t have the license yet, you can grab a free 30 days license from VMWare site by clicking the “Get License Key…” button as shown below.

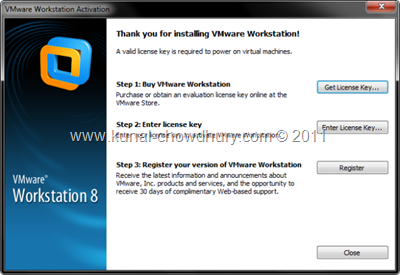

10. Provide License Key to Boot into VM



You need to login to your VMware account to get the license key. Enter the license key in the same screen and continue with the OS installation once again.

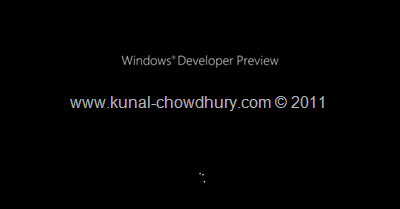

11. Start with the Windows 8 Installation Step



Once the installation files get loaded in memory, you will see the first installation screen of Windows 8. Select the language, currency format and keyboard input method from the screen to continue. Click Next to proceed.

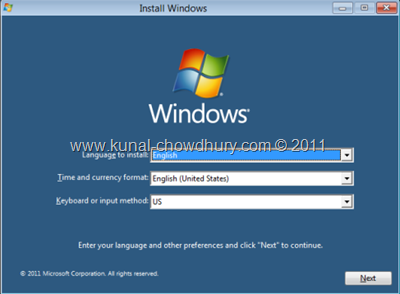

12. Chose OS Language



In the next screen, click “Install Now” button as shown below:

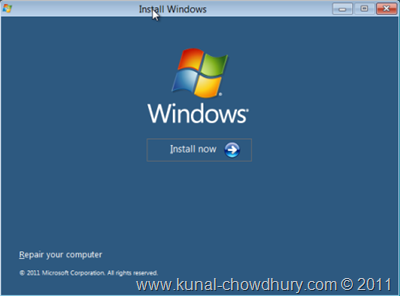

13. Click Install Now to Continue with the Setup



In the next step, accept the license agreement. You need to accept it in order to continue with the installation.

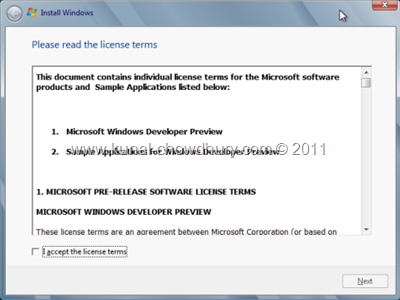

14. Accept the License Term



As we are doing a first time installation, click the “Custom” button as shown below:

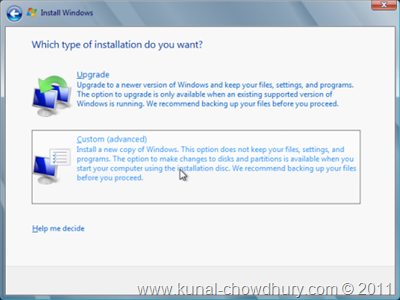

15. Click Custom to Proceed with the Installation



Select your drive where you want to install the OS. In our case, you will see a single drive here. Select it and click “Next” to proceed with the next step as shown here:

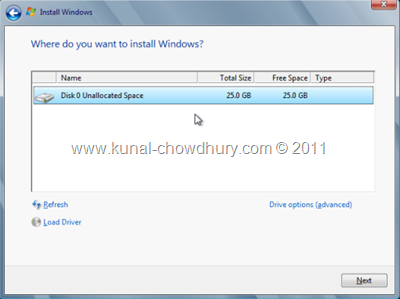

16. Select the Installation Drive



This will start copying the installation files to your Virtual Machine and proceed with the Windows 8 installation. Have a cup of copy while it installs to your drive.

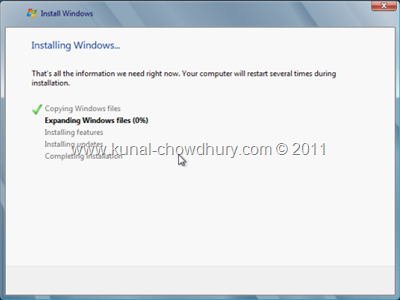

17. Windows 8 Installation Process Started



Once the installation ends, it will reboot the VM and proceed to the OS settings.



Configuring Windows 8

Once the installation is done, you need to configure the Windows 8 OS to proceed with it. The first step is to give a name to your machine. Chose a good name here so that, you can recall it later.

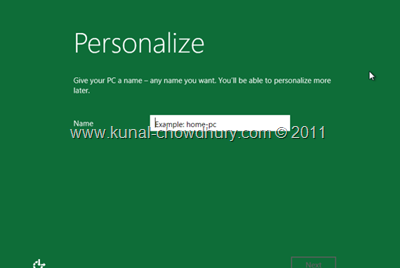

18. Enter PC Name



In next step, click “Use express settings” to proceed. If you are an advance user, you may proceed with the “Customize” option. The custom option will have many screens. If you are not comfortable changing all these screens, just go with the express settings option as shown below:

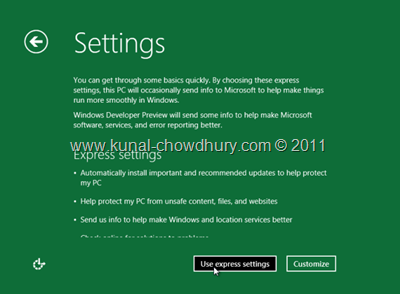

19. Use Express Settings to Configure your Windows 8 Installation



In the next step, you need to setup the user accounts. In Windows 8, there are two options. You can proceed with either Windows Live login or you can proceed with creation of the local user account. Let’s create a local user for our installation. Click “Don’t want to log on with a Windows Live ID?'” link as shown below:

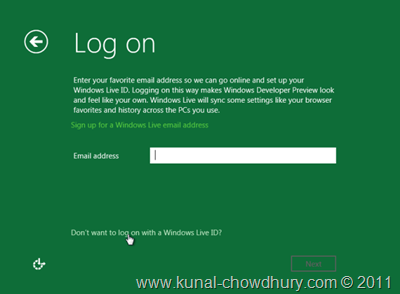

20. Proceed with User Account Creation



In the next screen, click the “Local account” button.

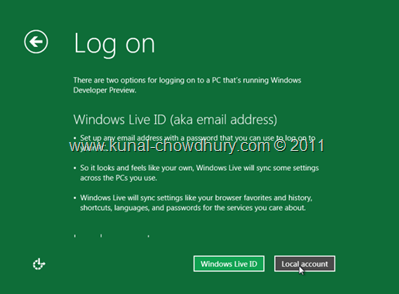

21. Create a Local User Account



Enter Username, Password and other fields as require by the installation to create a local user account for your Windows 8.

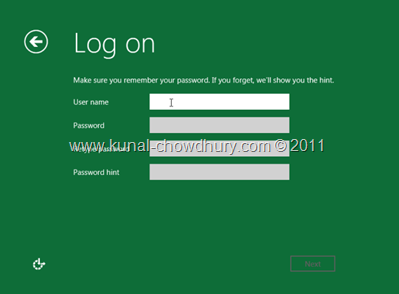

22. Provide Logon Details of the System User



Proceed Next to continue. This will finalize the installation. Wait for few moments and let the installation to complete.

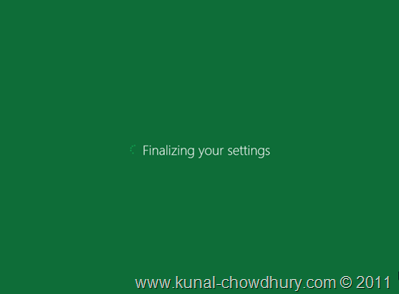

23. Final Step of the Installation



Now you will see the “Welcome” screen of the Windows 8 operating system. Wait for few more minutes.

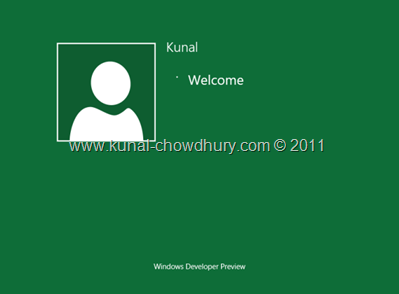

24. Welcome Screen will Show Up



After this, it will logon to the system with the provided local user account and you will see the all new Windows 8 Start Panel as shown below:

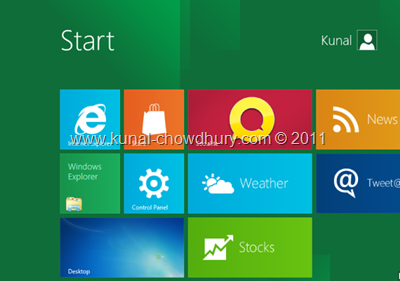

25. Finally the Windows 8 Start Screen



This ends the complete installation process of Windows 8 Developer Preview in a VMWare workstation 8. Hope this was helpful for you to understand the Virtual Machine creation and Windows 8 installation in a VMWare workstation. Let me know, if you find any issues installing the same in VMWare too. Use the comment box below if you have any queries.
